Microwave Thermostat

---

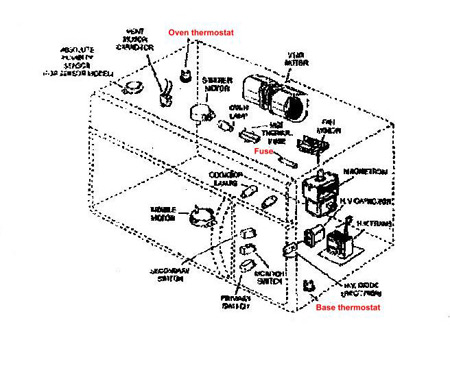

Most microwaves today have a flame-oven thermostat-safety built into them. This oven thermostat will open up (no continuity) when something has been overheated or set on fire in the oven. An example of where the flame-oven thermostat is in an over the range micro, usually the thermostat for the oven is on the top area....

Click on the picture for a larger view

The flame-oven sensor-thermostat is suppose to be closed ( full continuity ) all the time and will open up ( no continuity ) when needed, like when something like a small fire in the oven occurs.

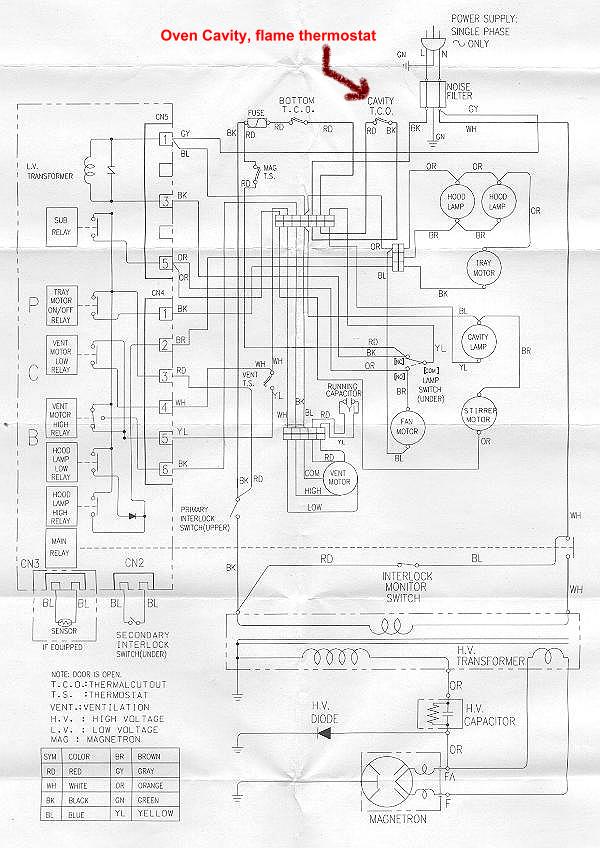

A wiring diagram showing where the flame/oven thermostat may be.

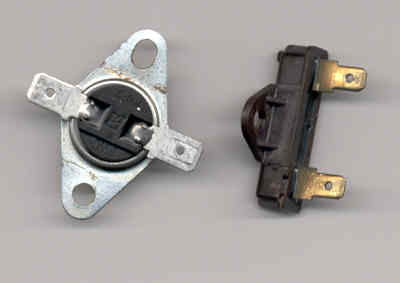

A sample picture of a couple different flame/sensor thermostats.

---
