Faulty Whirlpool Icemaker
Reference Model: WRF736SDAM11
Problem: Refrigerator is displaying an E2 error code on test 56. Ice maker has been replaced, the temperature is ok & test 45 fills the ice maker. The ice maker will initially make ice but will not call for water after completing test 45.
Diagnosis: The ice maker in this unit is a 'dummy' ice maker meaning it takes power and operational commands from the control board. In this case, what seems to be a faulty ice maker may actually be caused by a faulty main control board. Before replacing the board, do the following:
1) Ensure the icebox fan is running properly and that the temperature is below the cut-off of 16 degrees F ( -9 degrees C ).
2) Check the emitter/receiver system to make sure the unit does not think the ice bin is full.
3) Make sure the door light/interconnect switch is operating properly.
If none of these checks solves the problem, the main control board may be faulty.
Some Whirlpool Refrigerator parts for our reference model#
Item Number EDR2RXD1
EveryDrop Ice & Water Refrigerator Filter 2
Item Number W11396033

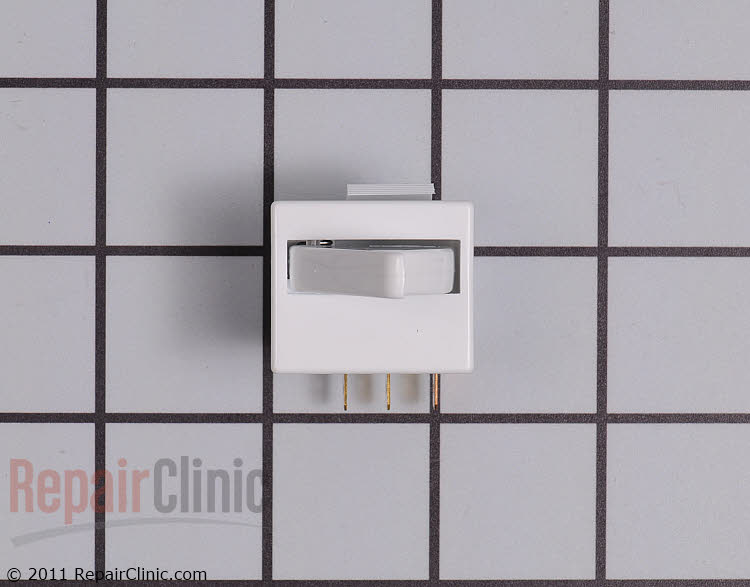

Light/Fan switch, 3 terminal
Item Number W10822606
Ice dispensing auger motor
Item Number W11168758

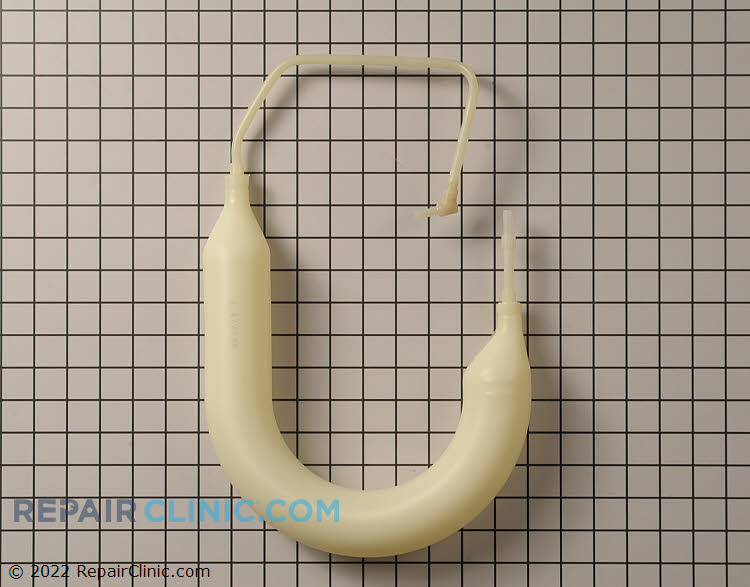

Water reservoir
