Upright Freezer error codes:


*Sometimes* your freezer tells you exactly what's wrong, as long as you can crack the code. Below are common error code tables for two popular brands, along with an explanation of what the code means, possible repair parts you might need and DIY advice.


Freezer Repair and Maintenance Parts


  1. Frigidaire Freezer version A - Electronic control model freezer
  2. Frigidaire Freezer Version B - Deluxe electronic control model freezer
  3. Kenmore Freezer Version A - Electronic control model freezer
  4. Kenmore Freezer Version B - Deluxe electronic control model freezer
  5. If needed, some parts help





Frigidaire Upright Freezer A

Error Code Condition Advice Possible Parts Required

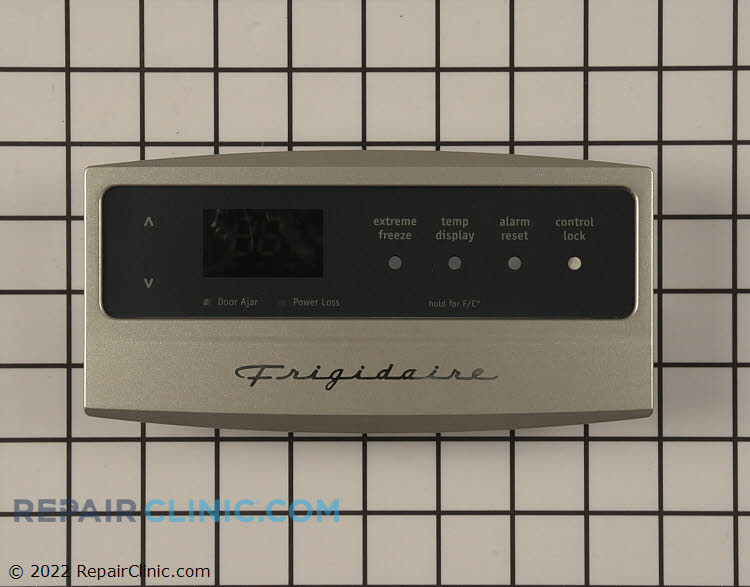

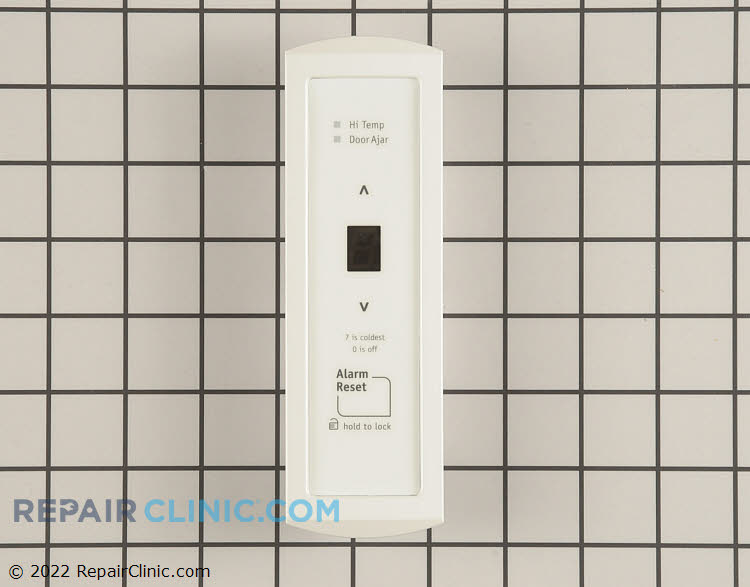

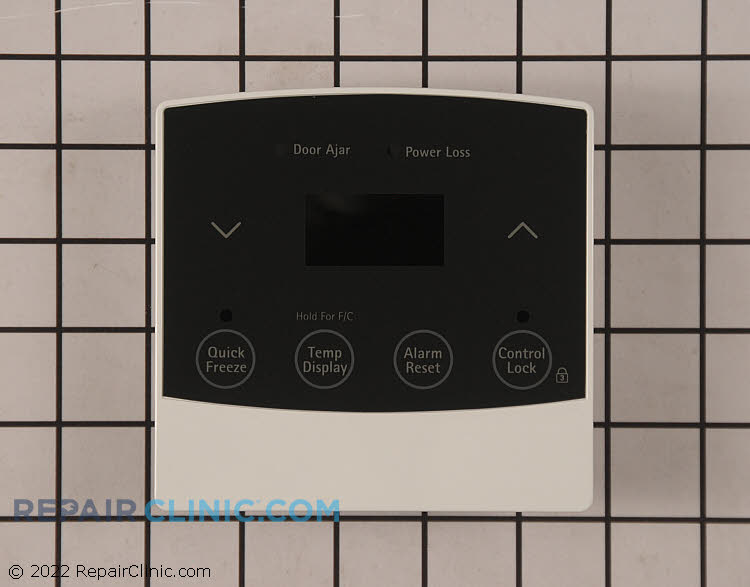

E7 Stuck key on the control Unplug the freezer for 1 minute to reset the electronic control board and then plug the freezer back in. If the code returns, replace the user interface control User interface control

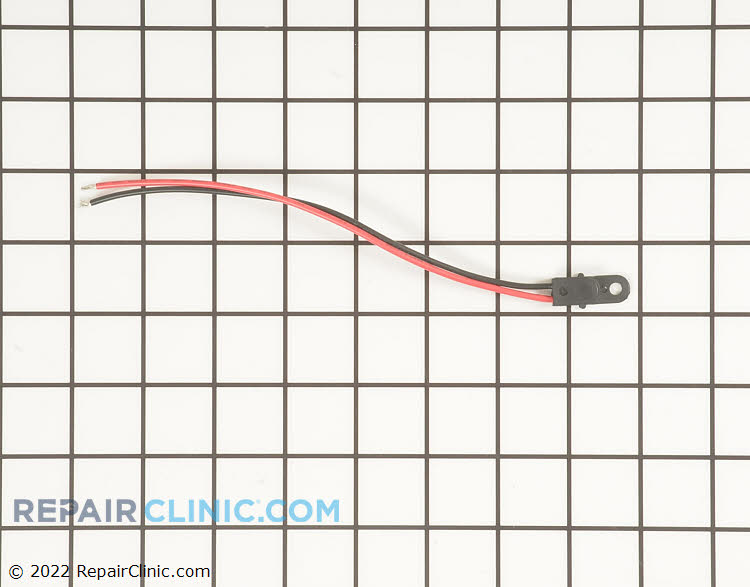

E8 or E9 Thermistor is defective The thermistor is the temperature sensor inside the freezer. Unplug the freezer and check the thermistor wire harness for damage or a loose connection. If the wire harness is okay, replace the thermistor Thermistor, Wire harness
. (Decimal point only in the display) Showroom display mode In the showroom display mode, all buttons operate and the interior light works. No alarms sound. To exit the showroom display mode, unplug the freezer. Press and hold the Up and Down arrows at the same time while plugging the outlet cord back in None
L Control lock is on Press and hold the Alarm Reset button for 3 seconds to disable the control lock None
OFF Freezer is turned off Press the Up arrow 3 times to display the #1 setting. Continue pressing the up arrow to choose the setting you want None

Freezer Repair Parts


Frigidaire Upright Freezer B

Code Condition Advice Possible Parts Required
Temperature flashing and control beeps Freezer temperature is too high Loss of electrical power can cause high temperature in the freezer. Make sure that the power cord is plugged in. Check the electrical outlet for power. Reset the house circuit breaker if the outlet doesn't work. If the compressor isn't running, the problem could be a failed start relay or defective electronic control board Compressor start relay, Electronic control board, Fan motor
d Door is ajar Close the door. If the door is closed and the code displays, then replace the door switch Door switch
CE Communication error between the control panel and the electronic control board Unplug the freezer for 1 minute to reset the controls and then plug the freezer back in. If the code returns, unplug the freezer and check the control panel wire harness for damage or a loose connection. If the wire harness is okay, replace the control panel. If the problem persists, replace the electronic control board Control panel, Electronic control board
E Control system error Unplug the freezer for 1 minute to reset the electronic control board and then plug the freezer back in. If the code returns, unplug the freezer and check the electronic control board wire harness for damage or loose connections. If the wire harness is okay, schedule a service technician to diagnose and repair the freezer Unknown
LO Control panel lockout To unlock the control panel, press and hold the Alarm Reset button for 3 seconds None

Freezer Repair Parts


Kenmore Upright Freezer A

Error Code Condition Advice Possible Parts Required
E7 Stuck key on the control Unplug the freezer for 1 minute to reset the electronic control board and then plug the freezer back in. If the code returns, replace the user interface control User interface control
E8 or E9 Thermistor is defective The thermistor is the temperature sensor inside the freezer. Unplug the freezer and check the thermistor wire harness for damage or a loose connection. If the wire harness is okay, replace the thermistor Thermistor, Wire harness
. (Decimal point only in the display) Showroom display mode In the showroom display mode, all buttons operate and the interior light works. No alarms sound. To exit the showroom display mode, unplug the freezer. Press and hold the Up and Down arrows at the same time while plugging the outlet cord back in None
L Control lock is on Press and hold the Alarm Reset button for 3 seconds to disable the control lock None
OFF Freezer is turned off Press the Up arrow 3 times to display the #1 setting. Continue pressing the up arrow to choose the setting you want None

Air Conditioner Parts


Kenmore Upright Freezer B

Code Condition Advice Possible Parts Required
Temperature flashing and control beeps Freezer temperature is too high Loss of electrical power can cause high temperature in the freezer. Make sure that the power cord is plugged in. Check the electrical outlet for power. Reset the house circuit breaker if the outlet doesn't work. If the compressor isn't running, the problem could be a failed start relay or defective electronic control board Compressor start relay, Electronic control board, Fan motor
d Door is ajar Close the door. If the door is closed and the code displays, then replace the door switch Door switch
CE Communication error between the control panel and the electronic control board Unplug the freezer for 1 minute to reset the controls and then plug the freezer back in. If the code returns, unplug the freezer and check the control panel wire harness for damage or a loose connection. If the wire harness is okay, replace the control panel. If the problem persists, replace the electronic control board Control panel, Electronic control board
E Control system error Unplug the freezer for 1 minute to reset the electronic control board and then plug the freezer back in. If the code returns, unplug the freezer and check the electronic control board wire harness for damage or loose connections. If the wire harness is okay, schedule a service technician to diagnose and repair the freezer Unknown
LO Control panel lockout To unlock the control panel, press and hold the Alarm Reset button for 3 seconds None
