GE dryer take apart helps and tips.


If your GE dryer looks like the one pictured below, we have some take apart/disassembly helps and tips.

GE dryer help

Step 1: Remove the two hex head screws from the top rear corners of the control panel.

GE dryer help

Step 2: Grasp the control panel sides, push it back, and roll it up and off. Carefully lay it on it's face on the top cover.

GE dryer help

Step 3: Remove the five screws from the control panel cover. Disconnect the connectors from the control board and set the control panel aside.

GE dryer help

Step 4: Remove the screws/rear cover plates from the top cover. Remove ground screw from the back right corner opening.

GE dryer help

Step 5: Remove the two phillips head screws from the back corners of the top cover. Open the dryer door and remove the two screws from the front underside of the top cover.

GE dryer help

Step 6: Grasp the front corners of the top cover, lift up, slide back and lift up. Hold the top cover with one hand, push the wiring harnesses through the openings and then set the top cover aside.

GE dryer help

NOTE: To remove the front panel, remove the two screws from the top front panal corners, and disconnect all of the connectors at the door switch. Set the front panal aside.


Motor & blower asm

Motor & blower asm

Motor & blower asm - Item Number WE17X23056

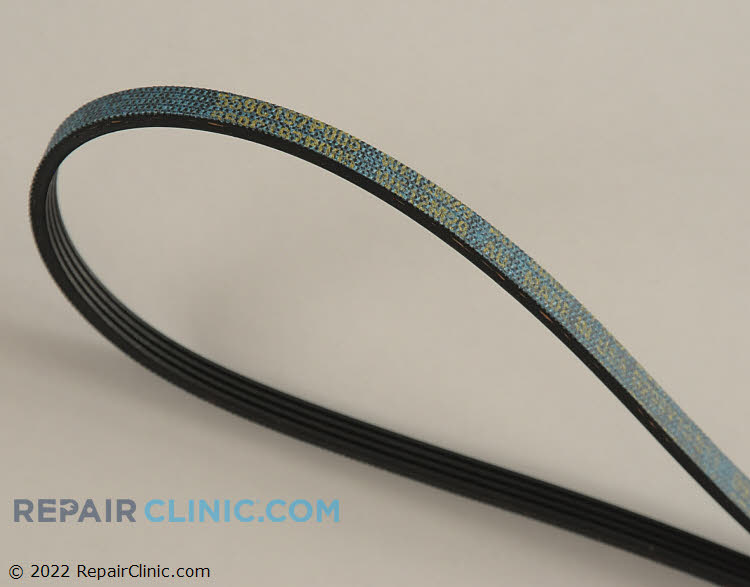

Dryer drum drive belt

Dryer drum drive belt

Dryer drum drive belt - Item Number WE12M29

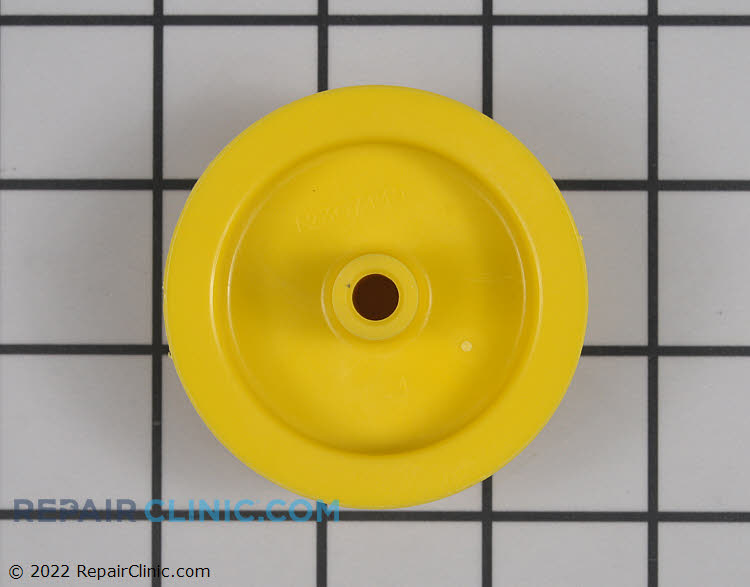

Dryer idler pulley wheel

Dryer idler pulley wheel

Dryer idler pulley wheel - Item Number WE12X83

Dryer drum rear bearing sleeve

Dryer drum rear bearing sleeve

Dryer drum rear bearing sleeve - Item Number WE1M462
