Whirlpool Dryers

Whirlpool, Inglis, (some) Kenmore dryers....

Always remember Electricity is dangerous and should be treated with respect.

Please pick a topic by Make and problem...hope you find this helpful :-)

  1. Changing from 3 to 4 wire hookup on a electric dryer
  2. Door switch replacement help for a common door switch
  3. Dryer basics - Venting problems and power supply
  4. Dryer basics - timers and how they work
  5. Dryer basics - power cord problems
  6. Dryer basics - dead dryer
  7. Dryer *general* repair flow chart....Click here
  8. Gas dryer smell
  9. How do dryer thermostats work?
  10. How long can my dryer vent be in length?
  11. How to change a common rear drum seal
  12. How the belt is suppose to look at the motor and idler pulley
  13. Help on replacing dryer motor and some wiring tips for the 279827 motor
  14. Help on replacing dryer motor and some wiring tips for the 279787 motor
  15. Help for storing an appliance
  16. Important Disclaimer
  17. I dropped something down the lint filter area....help!
  18. Inglis, Whirlpool and Kenmore most common style dryer - how to take apart ( lint filter on top )
  19. Inglis, Whirlpool and Kenmore most common style dryer - how to take apart slide show ( lint filter on top )
  20. Whirlpool or Sears dryer with heater on the floor and four rollers for drum style - take apart helps ( lint filter in the door )
  21. Inglis, Whirlpool and Kenmore electric style dryers - no heat problems
  22. Inglis, Whirlpool and Kenmore electric element changing procedures
  23. Inglis, Whirlpool and Kenmore dryers - air flow
  24. Inglis, Whirlpool and Kenmore style dryers - noise problems....drum rollers and idler pulley information....
  25. Inglis, Whirlpool and Kenmore style dryers - belt change
  26. Inglis, Whirlpool and Kenmore dryer general motor problems
  27. Inglis, Whirlpool and Kenmore gas style dryers - no heat problems
  28. Inglis, Whirlpool and Kenmore dryers - where are my thermostats
  29. If your drum belt looks like either of these....change it!!
  30. Idler pulley slide troubles with newer Whirlpool build Roper dryer
  31. My dryer will not shut off
  32. Newer style Whirlpool - Inglis - ( some ) Kenmore dryer front drum support ring install help
  33. Pilot flame help
  34. Sample wiring diagrams
  35. Test for ohm meter checking on electric dryers with no heat
  36. Taking apart an Duet or HE3 dryer for a belt change
  37. Taking apart a Whirlpool Thin twin washer/dryer to replace the belt
  38. Timers and some common Auto dry troubles and solutions
  39. What is a grounded element?
  40. Whirlpool - Kenmore dryer motor problems in the dryer with Even Heat Control....info on this is here + Expanded repair helps for a common "Even Heat" dryer

Inglis, Whirlpool, Kenmore style dryers:

Most Kenmore dryers are built with the Inglis/Whirlpool design. For "low heat" complaints or "taking too long to dry" complaints, always check the venting system first. Do not go outside and put your hand under the vent opening and say " it is fine - I feel air coming out"...that is not good enough...take your venting apart, clean it ALL out from the dryer exit to the outside!....and make sure the vent hood flapper works and that it is not clogged with lint.

Inglis, Whirlpool and Kenmore style dryer noise problems:

Most noise complaints from this style dryer comes from the idler pulley and two drum support wheels. The idler pulley just clips into the bottom of the dryer and keeps tension on the drum belt. The drum rollers have clips that must be removed from the shafts before trying to replace them. If one wheel is worn out, replace them both = less problems later on. See "how to take apart" to access the rollers, once the belt is disconnected from the idler pulley and motor pulley, lift out the drum. The roller on the left has a bracket and 2 clips to remove before the roller can be replaced. The right roller has just 1 clip that must be removed to replace the roller. Use a cloth or fine sand cloth to clean up the shafts, use a light oil before installing the new rollers. DO NOT use a heavy grease as this will attract dust and become very dirty and gum up the rollers. Check the belt will you are there and clean out any dust from motor and from the drum base. See how to take apart information. A new picture of the roller, shaft and clips...

Inglis, Whirlpool and Kenmore style dryer - no heat problems:

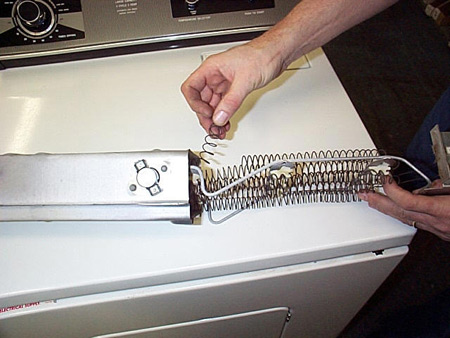

Electric dryers - See the "how to take apart" section first if needed. Always check the power supply first...if one house fuse blows or 1/2 of the breaker trips, it is possible for the dryer to run with no heat. If you have a volt meter, you should read 240 volts between the red and black wires, 120 volts between the white and black and 120 volts between white and red, check for this at the main power connection. If you have 240 volts to the dryer, remove rear access panel, turn dryer on and test for 240 volts to the *heating element wire connections (#4). If you have 240 volts there and no heat = bad element, the element must be broken physically to be bad. If you have no power at the heating element, remove power, remove wires to the heating element and isolate them so that they can't touch anything. Reinstall power and check each wire for power from the wire to the dryer cabinet, one wire will probably show 120 volts and the other will show zero. Make note of the color or # of the wire that has no power, remove power to the dryer and check the wiring diagram that comes with the dryer to find out where that color or # wire goes to. EG: - wires might be yellow and red, if the yellow wire (example only) was the one that had no power, look at the wiring diagram to find out where that goes to and check only those parts, no need to check the other colored wire parts as they are working. Things to check are, * thermostats, timer contacts, selector switch, motor switch heat contacts ( 1&2 on the motor switch ) and * thermal fuse. If the wires to the heating element are the same color, just remove power after test and slowly follow that wire that has no power with your hand to see what parts it goes to. If live volt testing scares you, try the ohm check instead.

*#1-Thermal fuse that controls heat. If the dryer overheats, this fuse will blow. One shot fuse. Does not reset.

#2-Canister for the heater element.

#3-Hi limit thermostat. This thermostat is a safety thermostat in case the dryer severely overheats. When this safety thermostat is defective, it should raise a red flag for air flow problems.

#4-This is the terminals of the heater element that is inside the canister.

#5-Thermal fuse that controls motor run.

#6-Control thermostat. This is the thermostat that controls the cycling of the heater in high heat mode.

#7-Heater for low heat. When you select low heat, 110V is sent to this heater that the control thermostat sits in. The heater helps cycle the control thermostat faster, therefore you get less heat than the high heat mode.

Inglis, Whirlpool and Kenmore style dryer belt change:

Disconnect power first. First see the "how to take apart" section. The drum will remain in place, the top panel will be lifted up against the wall and the top of the front will have to be pulled forward to slip the belt around the drum ( ribs toward the drum ), loop belt around idler pulley and motor pulley, reinstall front and top and slowly turn drum one turn to line up the belt. This should also help you out.

Inglis, Whirlpool and Kenmore style dryer thermostats:

You will find the safety thermostat attached to the heating element cover, the operating thermostat(s) are on the fan blower housing. How do dryer thermostats work?

Whirlpool or Sears dryer with heater on floor and four rollers for drum:

Be sure and unplug the dryer before starting repairs. Electricity is very dangerous. Be Safe.

The first step in disassembly of this dryer is to remove the bottom panel. Use your back button to return here after viewing the pictures. The heater element, high limit thermostat, thermal fuse, and the cycling thermostat can be serviced with the bottom panel off. There are two clips to be pressed in about 4 inches in from the side at the top of the panel. Press on these clips, pull out on the panel and lift it off a couple clips it mounts on.

To continue disassembly, pull out on the plastic end caps on either side of the control console. They are a press fit and will pull off. Take hold of the bottom of the end cap and pull on it. Remove the 2 screws under the end caps holding the control panel. Lift the panel and hinge it to the back of the dryer. Remove the 3 screws visible under the control panel holding the top down. Slide the top of the dryer forward toward yourself. It will disengage clips on the cabinet for removal. Remove 2 screws holding front to top of the dryer. Remove 2 screws below the door holding front to dryer. Disengage the clamp holding the air duct to the blower housing. Take the wires off the door switch. Take the wire off the sensor if your dryer has one. Remove complete front from dryer.

You must release the belt from the idler pulley to get it off the motor pulley to continue the disassembly. Put both hands into the area of the motor and feel how the idler pulley is spring loaded against the smooth backside of the belt. You can't see this well, so feel it and remember how the pulley is against the belt. Pull the idler away from the belt and take the belt off the motor pulley. You can now lift the drum from the rollers it rides on. This picture shows the thread of the belt with the drum removed so you can get a good idea of how it threads. The front rollers are on the front you have already removed. You can repair the rollers, heater element, thermostats, motor, and blower at this point. You must hold the pulley end of the motor shaft to get the blower off. The blower screws onto the end of the motor shaft. I have found that a 1/2 inch socket extension will fit right into the center slot of the blower . Turn the ratchet clockwise to loosen the blower wheel. Reverse this to tighten. This dryer also has a belt broken switch that will not let the motor run with a broken belt.

You can try repairs on the heat parts of this dryer with just the bottom panel removed. But from my observations of this dryer so far, I recommend that you disassemble this dryer for any repairs of the heating system and drive system. This product is especially susceptible to a partially closed vent. Pictured is the dryer before we cleaned it and the danger involved in using the white vinyl venting. I say it again. If you have the white vinyl venting on your dryer, redo the vent with good pipe and save your self lots of dollars in power savings and maybe even save your life from a burnt house. There are many aluminum semi-rigid, flexible, rigid products that does a good job in venting. Use the white vinyl stuff if you insist, but don't be surprised when problems occur, and don't be surprised if you burn your home down. Picture of the dryer. These folks were lucky!! They were right on the verge of a major fire. Reference model 110.66901690
